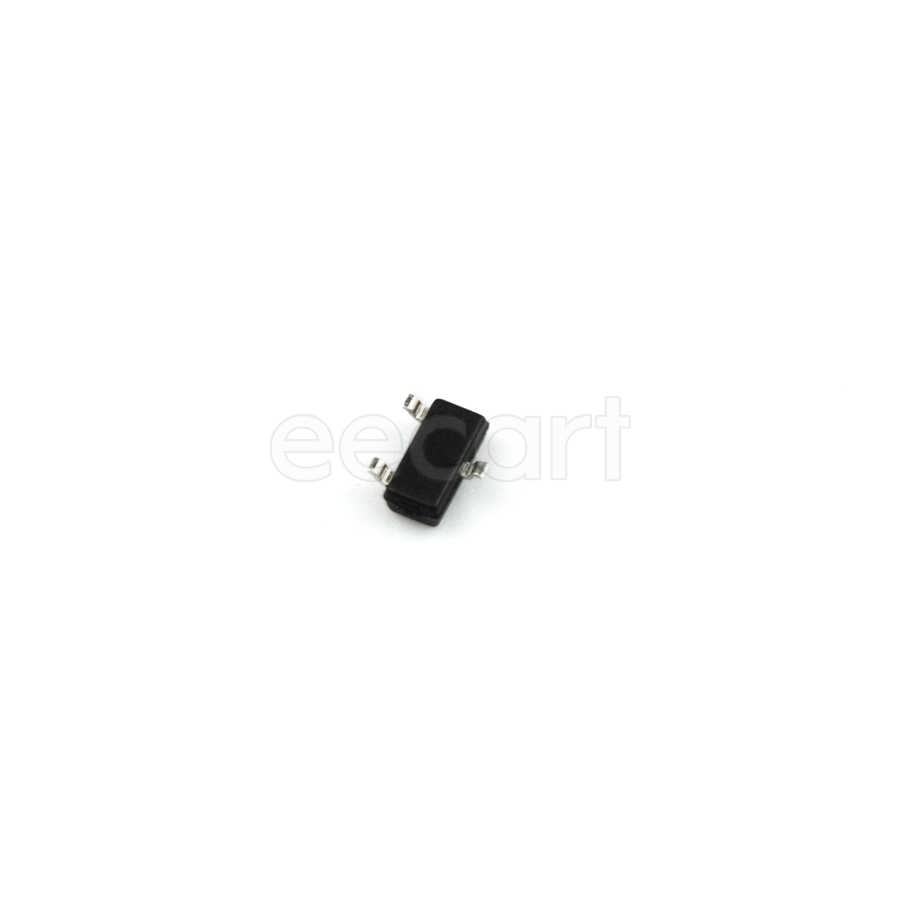

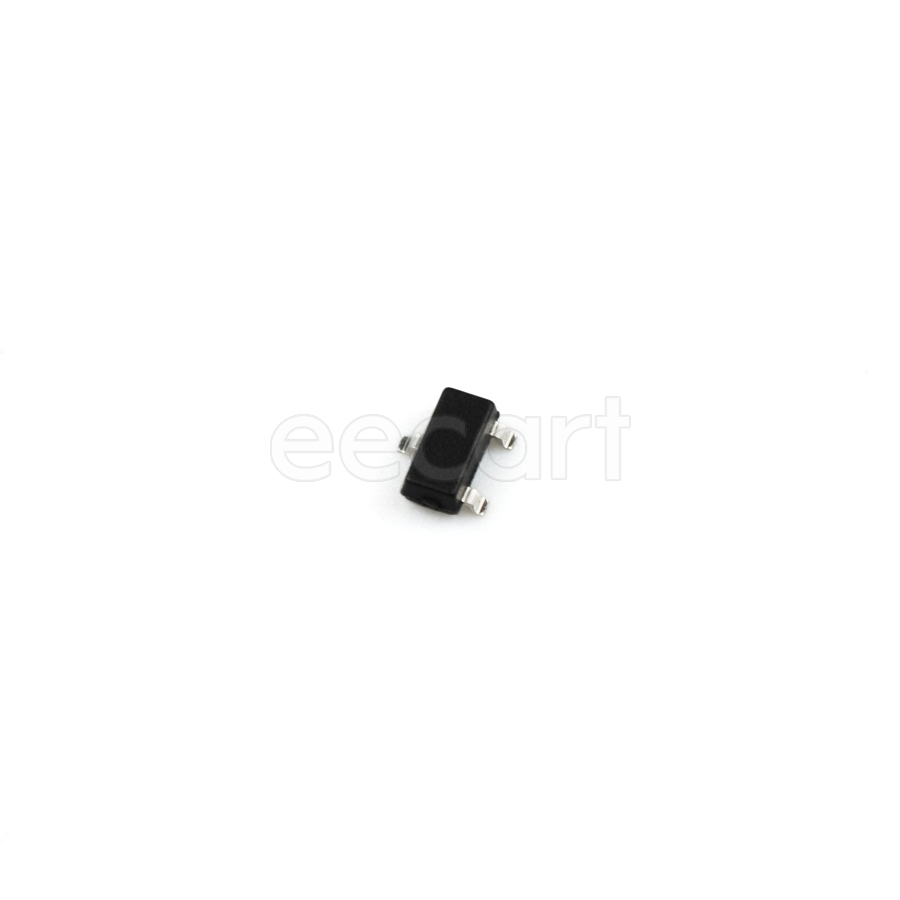

FDN302P

Manufacturer:

On Semiconductor

Mfr.Part #:

FDN302P

Datasheet:

Description:

MOSFETs SuperSOT-3 SMD/SMT P-Channel number of channels:1 500 mW -20 V Continuous Drain Current (ID):2.4 A 14 nC

Parameter	Value
Voltage Rating (DC)	-20 V
Length	2.92 mm
Width	1.4 mm
Termination	SMD/SMT
Max Operating Temperature	150 °C
Min Operating Temperature	-55 °C
Number of Pins	3
Resistance	55 mΩ
Height	940 µm
Packaging	Reel
Radiation Hardening	No
RoHS	Compliant
REACH SVHC	No SVHC
Number of Terminals	3
Number of Elements	1
Current Rating	-2.4 A
Max Power Dissipation	500 mW
Power Dissipation	500 mW
Threshold Voltage	-1 V
Number of Channels	1
Input capacitance	882 pF
Continuous Drain Current (ID)	2.4 A
Rds On Max	55 mΩ
Drain to Source Voltage (Vdss)	20 V
Turn-On Delay Time	13 ns
Turn-Off Delay Time	25 ns
Element Configuration	Single
Fall Time	11 ns
Rise Time	11 ns
Dual Supply Voltage	-20 V
Min Breakdown Voltage	20 V
Gate Charge	14 nC
Drain to Source Resistance	55 mΩ
Nominal Vgs	-1 V
Gate to Source Voltage (Vgs)	12 V
Drain to Source Breakdown Voltage (Vds)	-20 V
Schedule B	8541210080
Gate to Source Threshold Voltage	1.5 V
FET Type(Transistor Polarity)	P-Channel
